Просмотр примитивных и составных графиков

Цитирующий составной график

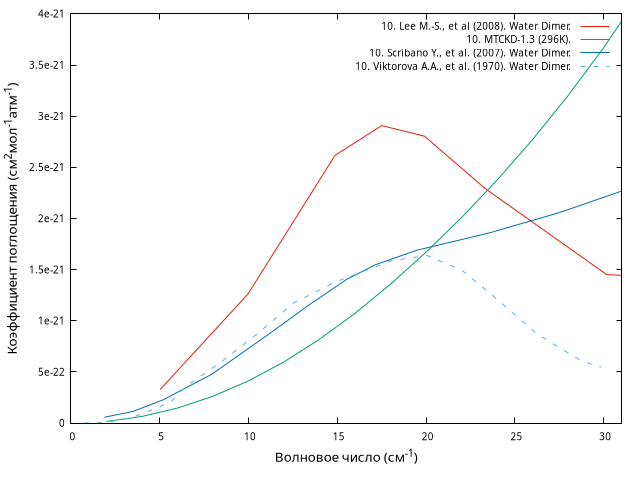

Рисунок 10. Smoothed spectra of WD absorption cross-section from Victorova and Zhevakin (V&Zh) [75], Scribano and Leforestier (S&L) [12] and Lee et al. [13] for temperatures around 296°K. The MTCKD [15] continuum model and empirical self-continuum of Burch [45] are also presented for comparison in the mm-wave region . The equilibrium constant used by S&L: Keq, S&L(~296°K)=0.05 atm-1, is adopted here to represent WD absorption cross-section for all three works. This causes the cross-section curve from Lee et al. to be a factor 1.86 lower than in the original work. The absorption in dB/km from V&Zh and S&L is converted to cm2 molec-1 atm-1 units using formula: 2:3026 x 10-6 [dB/km]* T *Keq, S&L/ (273.15* NA* PWD), where NA=2.687x1019 molec cm-3; T~296°K; PWD is WD partial pressure (atm) assumed in the particular work:8x10-6 in V&Zh and 2.2x10-5 in S&L. The implicit term Keq, S&L/Keq (where Keq is equilibrium constant applied for calculation in particular work) is used in the formula above to bring different calculations to similar conditions.
[12] Scribano Y, Leforestier C. Contribution of water dimers absorption to the millimeter and far infrared atmospheric water continuum. J. Chem. Phys. 2007;126:234301.
[13] Lee M-S, Baletto F, Kanhere DG, Scandolo S. Far-infrared absorption of water clusters by first-principles molecular dynamics. J. Chem. Phys. 2008; 128:214506.
[15] MTCKD Available from web-site: /http:// rtweb.aer.com/ continuum_frame.htmlS.
[45] Burch D. Continuum absorption by H2O, Air Force Geophysics Laboratory report,AFGL-TR-81-0300, Hanscom AFB, MA,1981.
[75] Viktorova A.A., Zhevakin S.A. Microradiowave absorption by dimers of atmospheric water vapor. Sov Phys Dokl 1970; 15:852–5.
Библиографическая ссылка Цитирующий составной график
I.V. Ptashnik, K.P. Shine, A.A. Vigasin, Water vapour self-continuum and water dimers: 1. Analysis of recent work, Journal of Quantitative Spectroscopy and Radiative Transfer, 2011, Volume 112, Issue 8, Pages 1286–1303, DOI: 10.1016/j.jqsrt.2011.01.012.
Координатная система (Линейный, Линейный)
Ось абсцисс (X) (Размерность) Волновое число (см⁻¹) Ось ординат (Y) (Размерность) Коэффициент поглощения (см²мол⁻¹атм⁻¹)
Рисунок 10. Lee M.-S., et al (2008). Water Dimer. Smoothed spectra of WD absorption cross-section from Lee et al. [13] for temperatures around 296°K. The equilibrium constant used by S&L: Keq,S&L(~296 K)=0.05 atm-1, is adopted here to represent WD absorption cross-section for all three works. This causes the cross-section curve from Lee et al. to be a factor 1.86 lower than in the original work.
[13] Lee M.-S., Baletto F., Kanhere D.G., Scandolo S. Far-infrared absorption of water clusters by first-principles molecular dynamics. J Chem Phys 2008; 128:214506.
Комментарий к графику Дополнительное описание
Вещество H2O-H2O Тип данных Теоретические
Температура 296 К Метод измерения (решения), Модель, Аппроксимация
Давление (полное) Происхождение данных Оцифрованные
Давление (парциальное) Тип источника Цитирующий
Длина пути (L)
Lee M.S., Baletto F., Kanhere D.G., Scandolo S., Far-infrared absorption of water clusters by first-principles molecular dynamics , Journal of Chemical Physics, 2008, Volume 128, Issue 21, Article 214506, DOI: 10.1063/1.2933248.
Плотность (d)
Волновое число (T зависимость)

Рисунок 10. MTCKD-1.3 (296K). The MTCKD [15] continuum model and empirical self-continuum of Burch [45] are also presented for comparison in the mm-wave region.
[15] MTCKD Available from web-site: /http:// rtweb.aer.com/ continuum_frame.html.
Комментарий к графику Дополнительное описание
Вещество H2O Тип данных Подогнанные
Температура Метод измерения (решения), Модель, Аппроксимация
Давление (полное) Происхождение данных Оцифрованные
Давление (парциальное) Тип источника Экспертный
Длина пути (L)
Плотность (d)
Волновое число (T зависимость)

Рисунок 10. Scribano Y., et al. (2007). Water Dimer. Smoothed spectra of WD absorption cross-section from Scribano and Leforestier (S&L) [12].
[12] Scribano Y., Leforestier C. Contribution of water dimers absorption to the millimeter and far infrared atmospheric water continuum. J. Chem. Phys., 2007;126:234301.
Вещество H2O-H2O Тип данных Теоретические
Температура 297 К Метод измерения (решения), Модель, Аппроксимация
Давление (полное) Происхождение данных Оцифрованные
Yohann Scribano and Claude Leforestier,
Contribution of water dimer absorption to the millimeter and far infrared atmospheric water continuum,
Journal of Chemical Physics, 2007, Volume 126, Issue 23, Article 234301,
DOI: 10.1063/1.2746038, http://link.aip.org/link/doi/10.1063/1.2746038.
Вещество H2O-H2O Тип данных Теоретические
Температура 297 К Метод измерения (решения), Модель, Аппроксимация
Давление (полное) 0.0210215 Происхождение данных Оцифрованные
Рисунок 10. Viktorova A.A., et al. (1970). Water Dimer. Smoothed spectra of WD absorption cross-section from Victorova and Zhevakin (V&Zh) [75]. The absorption in dB/km from V&Zh and S&L is converted to cm2 molec-1 atm-1 units using formula: 2:3026 x 10-6 [dB/km]* T *Keq,S&L/ (273.15* NA* PWD), where NA=2.687x1019 molec cm-3; T~296°K; PWD is WD partial pressure (atm) assumed in the particular work:8x10-6 in V&Zh and 2.2x10-5 in S&L.
[75] Viktorova A.A., Zhevakin S.A. Microradiowave absorption by dimers of atmospheric water vapor. Sov Phys Dokl 1970; 15:852–5.
Комментарий к графику Дополнительное описание
Вещество H2O-H2O Тип данных Экспериментальные
Температура Метод измерения (решения), Модель, Аппроксимация
Давление (полное) Происхождение данных Оцифрованные
Давление (парциальное) Тип источника Цитирующий
Длина пути (L)
Viktorova A.A., Zhevakin S.A., Microradiowave absorption by dimers of atmospheric water vapor, Soviet Physics Doklady, 1970, Volume 15, no. 852–5.
Плотность (d)
Волновое число (T зависимость)
